$ 10.00

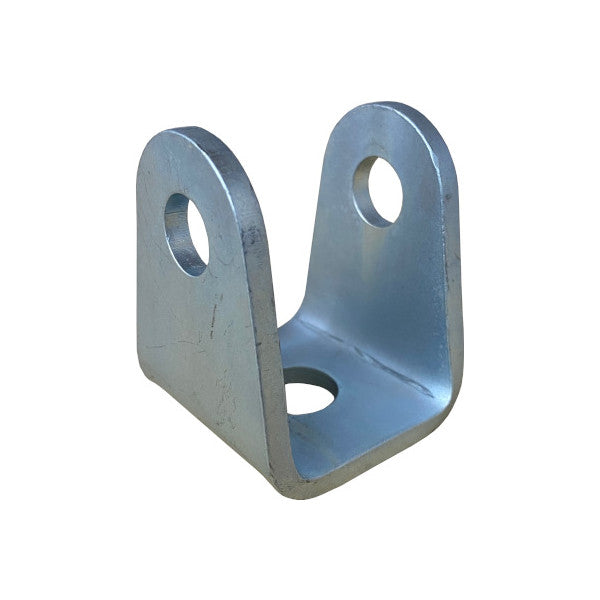

Bracket Spec Options

5/8 Mounting Hole

3/16 Mild Steel

Inside Width Dimension: 1 3/8

Side Mounting Holes: 1/2

Hardware Specs

1/2-20 Grade 8 Bolt Qty 1

1/2 Grade 8 Washers Qty 2

1/2-20 Grade 8 Nylock Nut Qty 1

Clear Zinc Tapered Spacers Qty 2

Rod End Spec Options

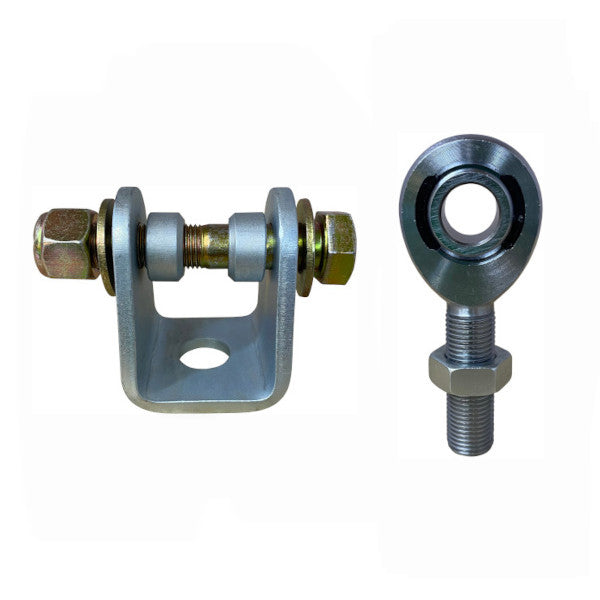

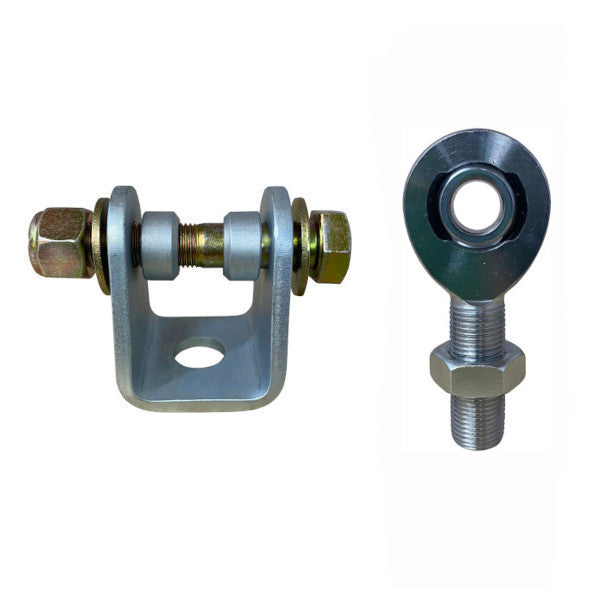

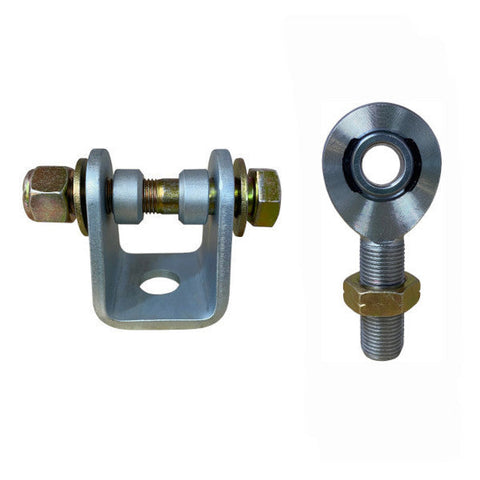

Economy RH or LH 1/2-20 Male With Jam Nut

Economy RH or LH 1/2 x 5/8-18 Male With Jam Nut

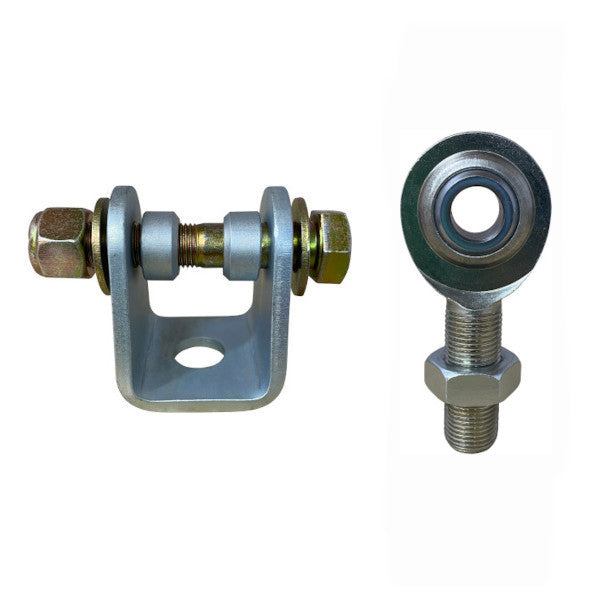

Chromoly RH or LH 1/2-20 Male With Jam Nut

Chromoly RH or LH 1/2 x 5/8-18 Male With Jam Nut

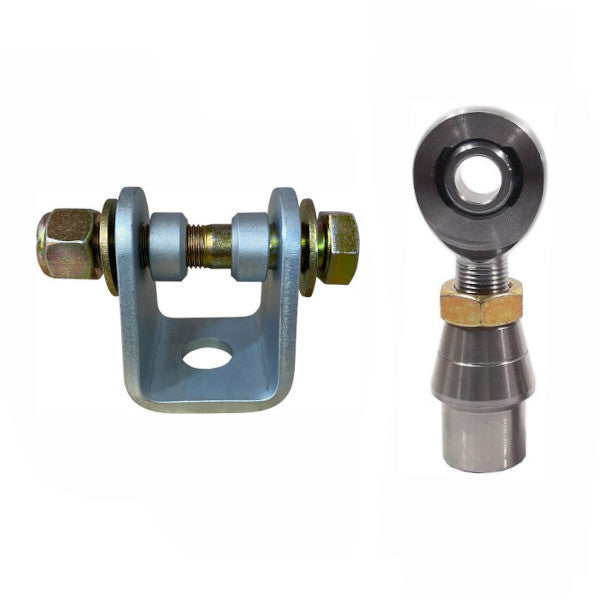

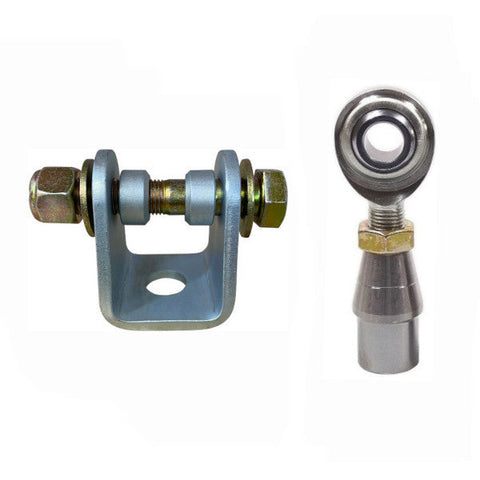

Weld-In Bung Spec Options

1/2-20 RH or LH Fits 1" OD. x .870 ID. x .065 Wall Tubing

1/2-20 RH or LH Fits 1" OD. x .834 ID. x .083 Wall Tubing

5/8-18 RH or LH Fits 1 1/4 OD. x 1.060 ID. x .095 Wall Tubing

5/8-18 RH or LH Fits 1 1/4 OD. x 1.010 ID. x .120 Wall Tubing



Type Clevis Mount / Diagonal Link Bracket
Vendor QS Components
SKU 4156735471
